Supplementary Set Pulley Blocks

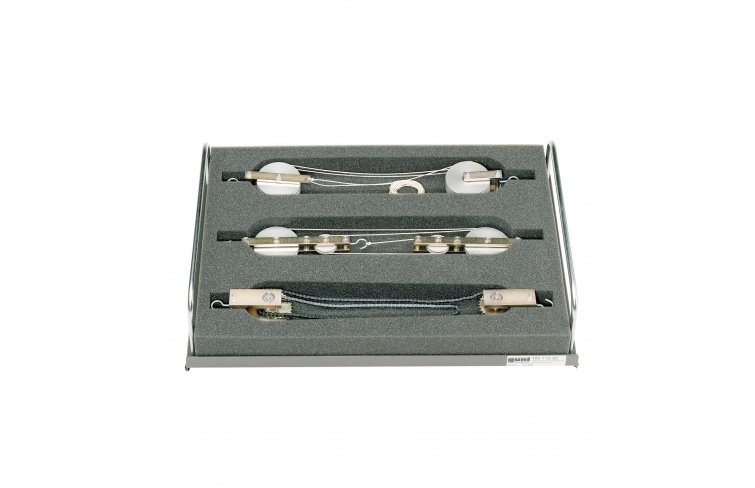

Supplementary set Pulley Blocks extends the scope of experiments which can be performed with Fundamentals of Static. comparison of different pulley blocks and their action as “simple machines”. The pulley blocks are set up on the panel of unit accessories. The line grid on the panel helps to readily determine the force and distance. The pulley blocks are of a robust metal design. Built-in ball and sliding bearings ensure low-friction rotation. The details of the pulley layout and the cable routing are clearly visible. The various elements of the experiment are clearly laid-out and held securely on a tray. Multiple trays can be stacked as a space-saving storage option.
1. Supplementary set for experimental unit Fundamentals of Static
2. Pulley layout and cable routing clearly visible
3. Pulley blocks: with 4 or 6 pulleys; differential block with roller chain
4. Cable pulleys made of anodised aluminium ball bearing-mounted
5. Chain wheels
6. Pullers: Nylon cord, roller chain
7. Materials stainless steel or steel, galvanised
8. Tray for the components
– nylon cord: d=2mm
– roller chain: 6,0×2,8mm
– number of teeth: 18, 28, 38
– made of anodised aluminium ball bearing-mounted
