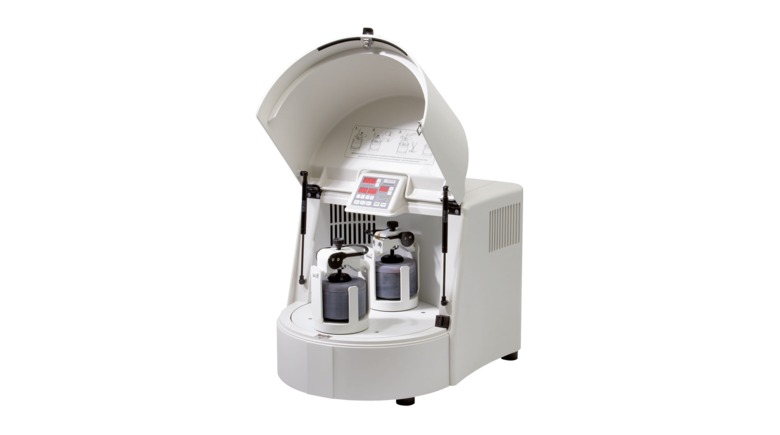

Planetary Mono Mill Machine
Description:
The monomill is used for quick dry or wet grinding of inorganic and organic samples for analysis, quality control, materials testing and mechanical alloying
| Dimensions and Weight | Dimensions:
500 x 370 x 530 mm (height x width x depth) Weight: approx. 67 kg (net), approx. 87 kg (gross |
| Operating Noise | The noise level can be as high as approx. 85 DB, The value fluctuates greatly depending on the speed and the material being ground |
| Voltage | 220-240V,50Hz |
| Current input | 7A max. |
| Power consumption | 1.1KW |
| Material | Maximum feed size approx. 10 mm
Maximum feed quantity 225 ml
|
| Final fineness | Dry grinding down to d50 < 20 μm (depending on material) Wet grinding down to to d50 < 1μm (depending on material)
|
