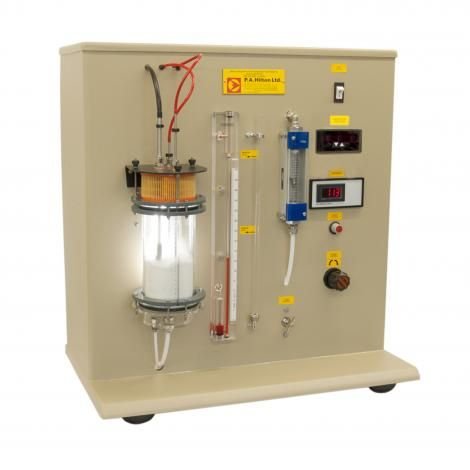

Fluidisation And Heat Transfer Unit

Specification:-

Transfer of heat in a fluidised bed
Glass reactor, illuminated from the rear
Fluidised bed made of corundum, particle size either 100µm or 250µm
Adjustable heating element
Temperature sensors at heater, air inlet, in fluidised bed
Airflow rate measurement with rotameter
Safety valve, temperature cut-out at heater, air filter at inlet and outlet

Glass Reactor

Capacity: 2,15L
Air Requirement: 300L/H
Filling Volume: Approx. 1L
Operating pressure: 0,5bar

Heater

Power: 0…100w
Surface: approx. 10cm²

Measuring Ranges

Temperature air inlet: 0…100°c
temperature heater / fluidised bed: 0…400°c
airflow rate (rotameter): 10…124 nl/min
pressure in fluidised bed: 0…25mbar
power: 0…200W
2 manometers: 0…1,6bar
LxWxH: 900x460x830mm
