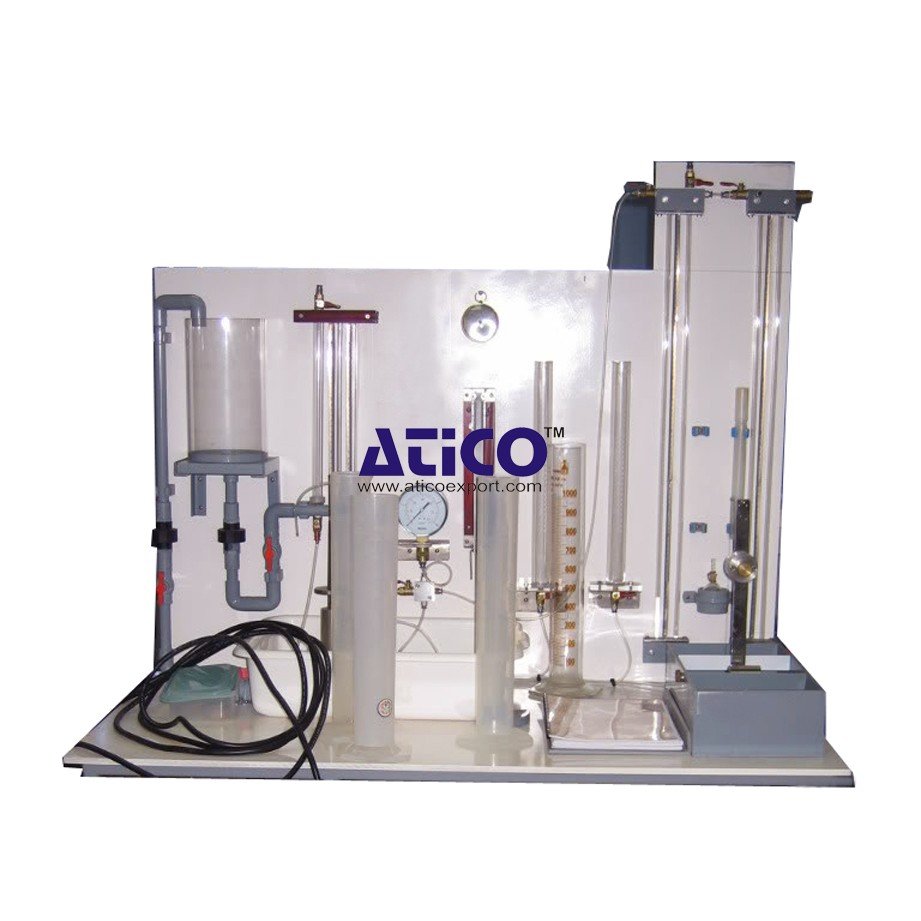

Fluid Properties Apparatus
Specification:
- Components stored on support frame manufactured from PVC
- 2x Hydrometer jars 50 mm diameter and 450 mm high
- Universal hydrometer with varying resolution of 0.01 at 0.70 SG to 0.5 at 2.00 SG
- 2x Falling sphere viscometer tubes 40 mm diameter with calibration marks at 0, 25, 100, 175, 200 and 220 mm
- Steel spheres 1.588, 2.381 and 3.175 mm diameter
- Spirit filled thermometer glass, Range -10° to 50° C
- Aneroid barometer, Range 910 to 1060 mbar
- 6x Capillary tubes 150 mm long with 0.4, 0.6, 0.8, 1.2, 1.7 and 2.2 mm bore
- Density bottle (pycnometer), Capacity 50 ml
- Dual scale lever balance, Ranges 0 to 250 gms x 1gm and 0 to 1 kg x 10 gms
Technical Details:
The following components are included:
- 2x Hydrometer jars (clipped to stand)
- 1x Universal hydrometer (in protective housing)
- 2x Falling sphere viscometer tubes (clipped to stand)
- 1x Plastic storage box containing steel spheres
- 1x Spirit filled glass thermometer (in protective housing)
- 1x Direct reading aneroid barometer (fixed to stand)
- 1x Parallel plate capillary apparatus
- 1x Capillary tube apparatus with 6 tubes of varying size
- 1x Archimedes apparatus comprising displacement vessel, machined bucket & matching cylinder
- 1x 50 ml density bottle
- 1x 250 ml plastic measuring cylinder
- 1x 600 ml glass beaker
- 1x Dual scale lever balance, adapted for use with Archimedes apparatus
